Introduction

Ligand affinity screening by nuclear magnetic resonance (NMR) spectroscopy is a versatile tool that is routinely used to support drug discovery and functional genomics research. The real power of NMR ligand affinity screens arises from its ability to directly detect protein-ligand binding events under native or near-native sample conditions. The most common NMR screening approaches (i.e. line-broadening, STD-NMR, and WaterLOGSY) are focused on detecting changes in the one-dimensional (1D) 1H spectrum of a ligand upon binding to a protein. Hundreds of compounds can be analyzed in a day by coupling these benefits with an automated sample changer, software to optimize probe tuning and other parameters, and rapid NMR data collection of with a cryogenic probe.

To improve the efficiency of NMR ligand affinity screens, compounds are usually evaluated in mixtures. Using mixtures provides two significant benefits: (1) a larger number of compounds can be screened in a shorter amount of time; and (2) the amount of protein required for the entire screen is reduced. However, there are also some drawbacks. As the size of a mixture increases, the probability that a mixture might contain more than one compound competing for the same binding site increases, thus weakening the NMR observable binding event for each compound. Also, compounds in the same mixture may react or interact with each other, thus chemically changing the compounds or causing problems with solubility or aggregation. Finally, the NMR signals from the multiple compounds may overlap leading to ambiguity in analyzing the binding results and the necessity for rescreening with individual compounds. This last problem can be overcome by creating mixtures without peak overlaps, but this task becomes challenging when one is working with a screen composed of hundreds or thousands of compounds. However, a previous study showed that mixtures with minimal peak overlap could be efficiently created by using a simulated annealing algorithm.

NMRmix is a freely available, open-source software solution for the generation of mixtures with minimal peak overlap. NMRmix was written in Python and utilizes the Qt framework with PyQt bindings to build a graphical user interface. NMRmix utilizes a combination of 1D 1H peak lists for each compound and an overlap range to define whether overlaps occur. The overlap scoring function considers the proportion of peaks in a compound that are overlapped as well as the intensity of the peaks. The software has customizable parameters, downloadable peak list data from the BMRB or HMDB, interactive simulated spectra views, graphs of statistics, and an easily useable interface. Additionally, NMRmix outputs regions of interest (ROIs) in a readable format that can be used to automate the analysis of NMR ligand affinity screening data.

Defining Overlaps

To determine whether an overlap occurs in a mixture, each 1H NMR signal in each compound is assigned a spectral range defined by a tolerance δ (in ppm) added to and subtracted from its chemical shift value c (c ± δ in ppm). This user-defined overlap range effectively represents the spectral region belonging to each peak of a compound. An overlap in a mixture occurs when the overlap range of a peak for one compound overlaps with the overlap range of a peak from a different compound. Overlaps are not registered when evaluating peaks from the same compound. The overlap range can be set independently for each peak in a compound, or a single global value for all peaks can be used.

Scoring Overlaps

_images/def_overlap.png

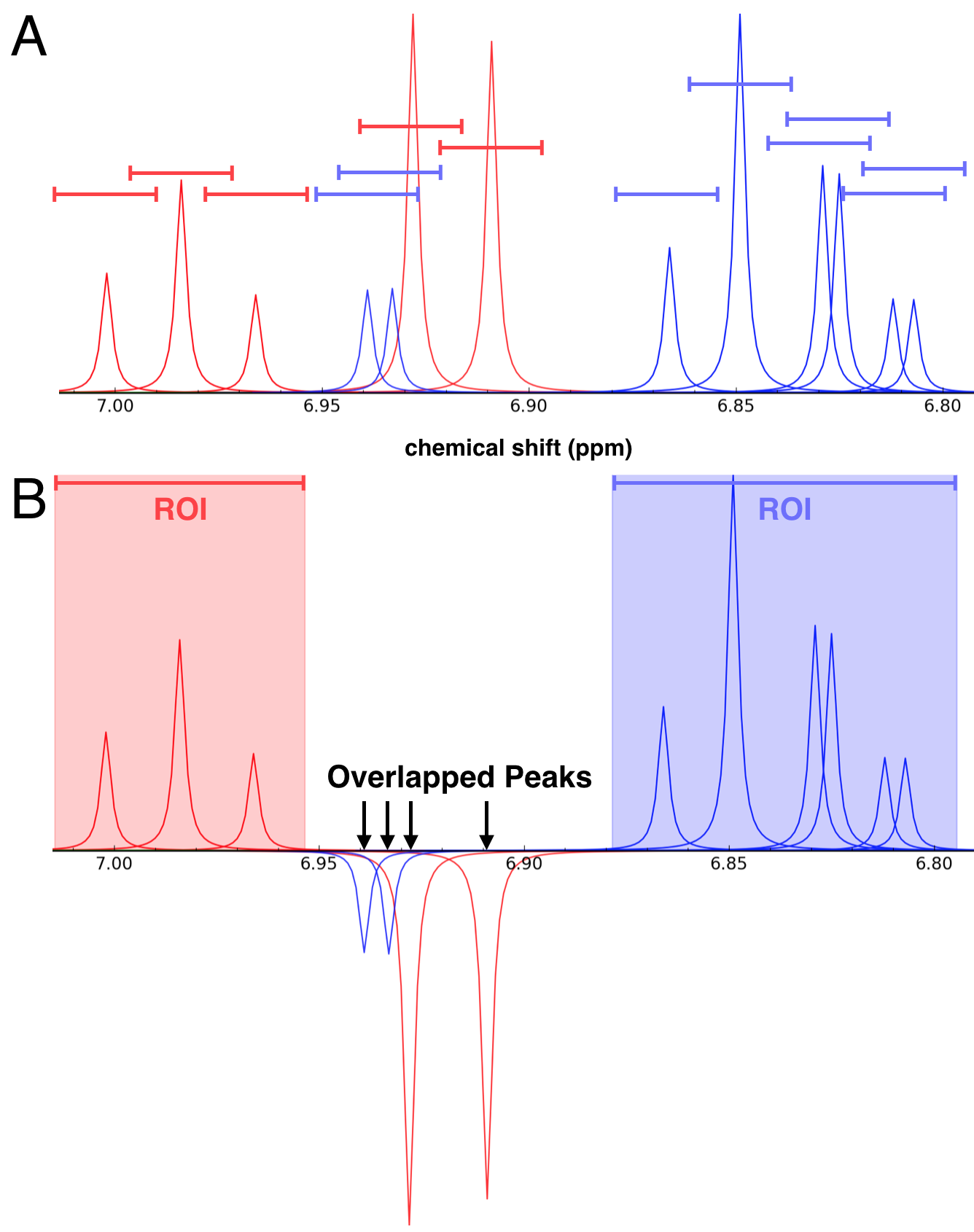

(A) Simulated 1D 1H NMR spectrum of a mixture containing phenol (red peaks) and 4-chlorocatechol (blue peaks). The colored lines centered above each peak, which represent overlap ranges of 0.025 ppm, define the overlap regions. (B) This same mixture as viewed in NMRmix: peaks from different compounds whose ranges overlap are inverted; and, elsewhere, overlapping peak ranges from a given compound form a region of interest (ROI) for that compound.

The goal of generating mixtures with no overlaps is frequently not achievable, owing to the number of compounds in each mixture and the distribution of 1H NMR chemical shifts in the compound library. Overlaps that do occur should not represent a significant proportion of the peaks belonging to any one compound in the mixture to minimize the ambiguity in identifying compounds in a mixture. Therefore, instead of using the total number of overlaps to optimize the mixtures, NMRmix uses a scoring function based on the proportion of peaks in each compound that are overlapped:

\(S_C = k\frac{N_O}{N_T}\)

where SC represents the overlap score for the compound, k represents the score scaling function, NO represents the number of peaks in the compound that are overlapped, and NT represents the total number of peaks in the compound. In this approach, the penalty associated with an overlap is lower in a compound with a large number of peaks when compared with a compound that has only a few or just one peak.

NMRmix also has the ability to use peak intensities as a factor in evaluating the optimization of mixtures. In most NMR ligand-detect screening approaches (e.g., line-broadening, STD, or WaterLOGSY), identifying a binding event depends on monitoring changes in the line width, intensity, or position of peaks belonging to a compound. The presence of nearby strong signals can hinder the detection of such changes in weak signals. To minimize this problem, NMRmix offers an optional scoring function (SC*) for use in optimizing mixtures:

\(S_C^* = k\frac{I_O}{I_T}\)

where SC* represents the modified overlap score for the compound, k represents the score scaling function, IO represents the sum of all of the intensities of the overlapped peaks in the compound, and IT represents the sum of all of the intensities of all of the peaks in the compound.

Optimizing Mixtures

The optimization of mixtures in NMRmix occurs through simulated annealing. In brief, a small number of compounds from different mixtures are swapped during each step of the annealing process. The number of compounds being swapped (the mixing rate) is a user-defined parameter that can be specified prior to optimization. After each annealing step, the new arrangement of compounds in the mixtures is evaluated based on a total overlap score, which is either accepted or rejected. This process continues until the maximum number of annealing steps (set by the user) is reached or stops before if none of the mixtures contains overlaps.

The total overlap score (ST) used to evaluate each arrangement of compounds in the mixtures is simply the sum of all of the overlap scores for each compound (SC or SC*) in their respective mixtures:

\(S_T = \displaystyle \sum_{i=1}^{n} S_C\)

During each step of the annealing process, if the total overlap score for the new arrangement of mixtures is less than or equal to the total overlap score of the current arrangement of mixtures, the new arrangement is automatically accepted; however, to minimize the possibility that the total overlap score for the mixtures becomes trapped in a local minimum due to a particular arrangement of compounds in the mixtures, each step of the simulated annealing process in which the total overlap score increases is evaluated according to a modified Boltzmann probability:

\(P = \displaystyle e^\frac{-k_T|ΔS_T| }{MT k_S}\)

_images/temp_vs_accept.png

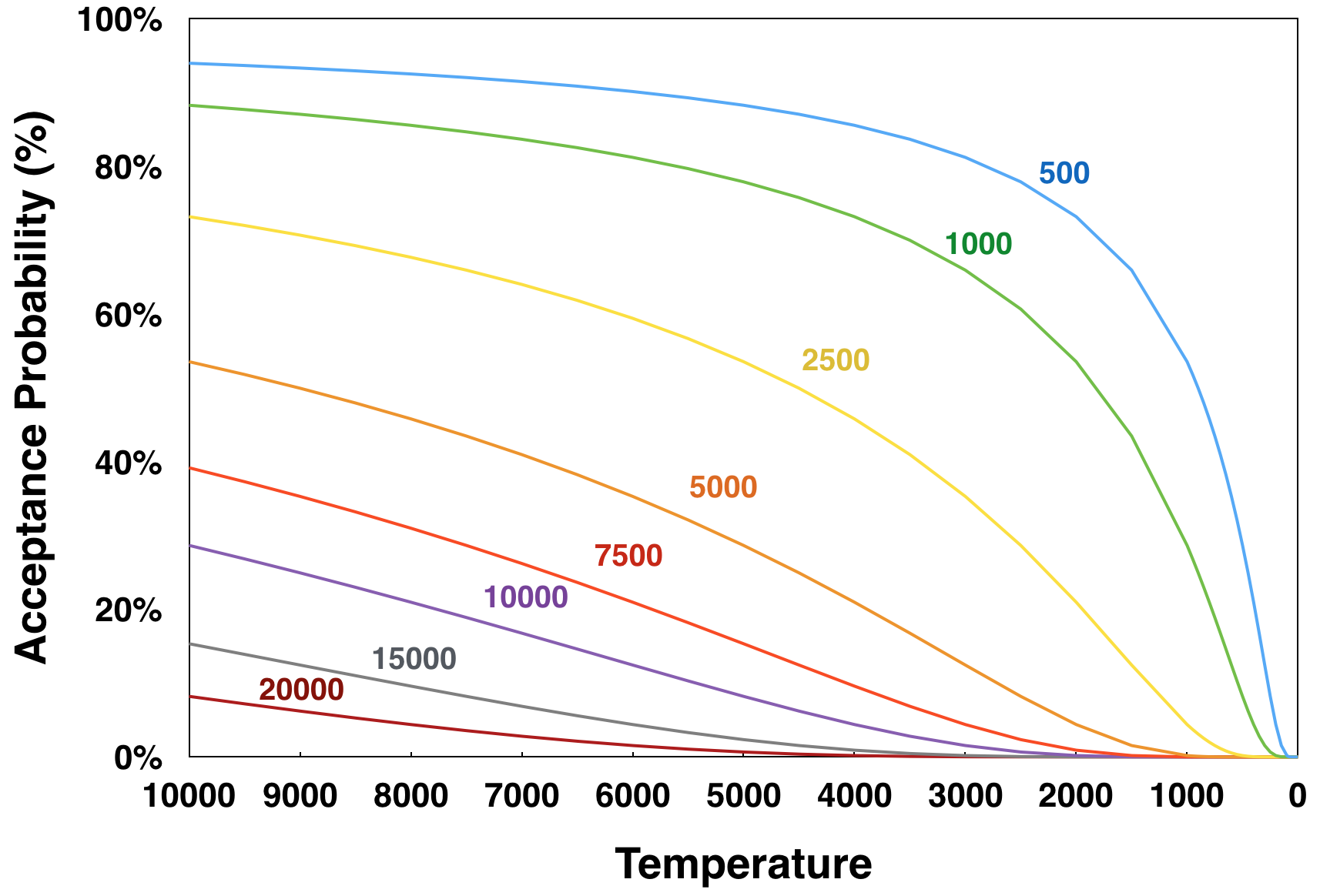

Temperature dependence of the Boltzmann acceptance probability as a function of ΔST, the difference between the total overlap score of the new set of mixtures and that of the current set of mixtures, with ΔST values: (blue) 500; 1000 (green); 2500 (yellow); 5000 (orange); 7500 (red); 10000 (violet); 15000 (gray); and 20000 (maroon). The calculations of acceptance probabilities used the default values for the temperature scaling factor (25,000), score scaling factor (10,000), and mixing rate (2).

where P is the probability of acceptance, ΔST is the difference between the total overlap score of the new set of mixtures and that of the current set of mixtures, kT is the temperature scaling factor, kS is the score scaling factor, M is the mixing rate, and T is the step temperature. To facilitate the calculation of a probability of acceptance, each annealing step is associated with a “temperature” value that decreases on each successive step. At the beginning of the annealing process, when the temperature is higher, the probability for accepting a more overlapped arrangement of compounds is greater. Even a new arrangement at a temperature of 10,000 that increases the total overlap score by 20,000 (equivalent to two completely overlapped compounds) still has an 8.2% chance of acceptance. Each subsequent step of the annealing process lowers the temperature, thus lowering the base acceptance probability. In most cases, once the temperature reaches approximately 100 (using default parameters), the probability of acceptance becomes zero.

Summary

NMRmix is a powerful, freely available, open-source tool for generating mixtures of small molecules with minimal NMR peak overlap. The optimization of mixtures is accomplished by using a simulated annealing algorithm previously described (Arroyo 2013). The user-friendly GUI facilitates easy mixture optimization and data analysis, and NMRmix only requires information about the compound library and a source for reference 1D 1H peak lists to get started. Additionally, NMRmix introduces the concept of intensity scoring, which penalizes overlaps that occur on the most intense peaks instead of treating overlaps of all peaks equally. After optimization, the resulting mixture table and ROI list can be exported to an easily readable CSV format. The availability of the ROI list in an easily readable format can also facilitate automation of data analysis for NMR-based ligand screening. The ranges of the ROI list can be easily extracted through scripting and imported into various NMR analysis tools as integration regions to automatically quantitate and compare spectra and identify hits. Future versions of NMRmix could include other non-NMR criteria, such as reactivity, solubility, aggregation, or structural similarity, into the score for optimizing mixtures. Additionally, NMRmix could be adapted toward optimizing mixtures for other nuclei used for NMR ligand affinity screens such as 19F-based screens.
